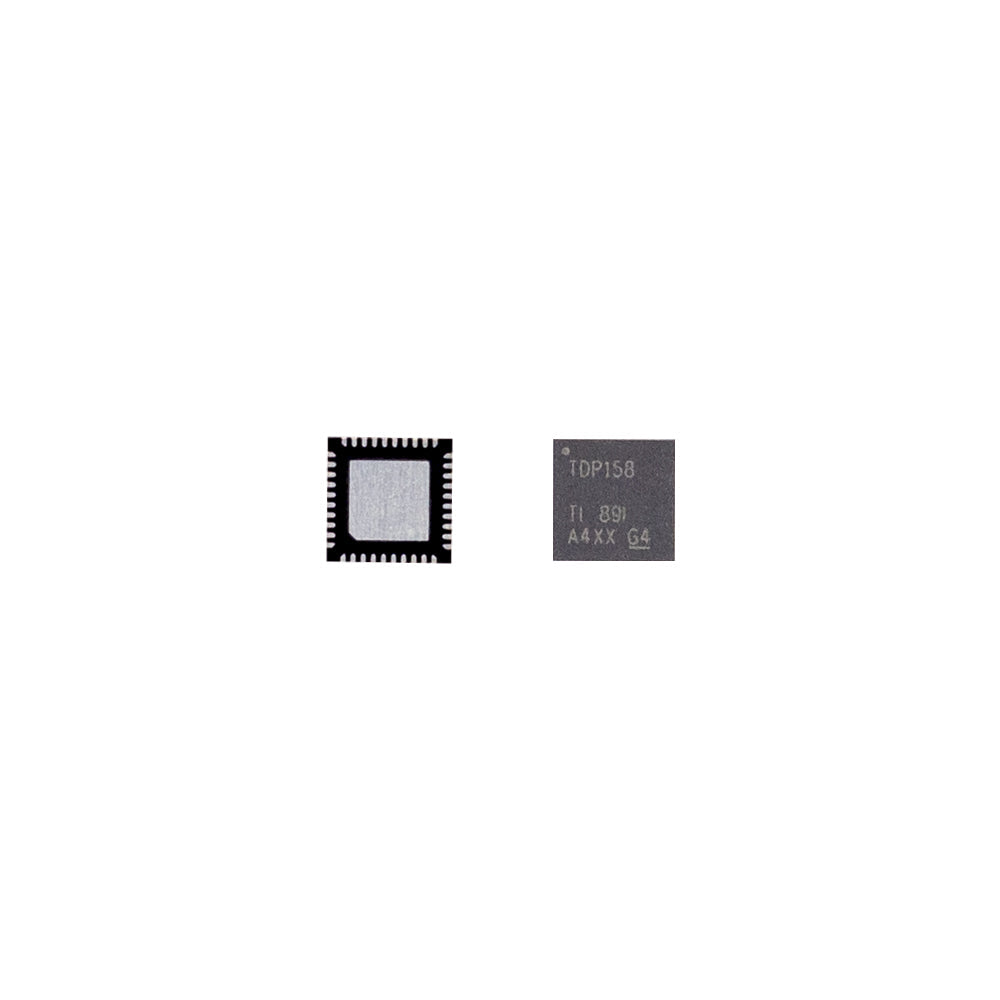

Microsoft Xbox One X Chip Set TDP158. TDP158RSBR. TDP158RSBT (QFN-40) Black OEM
SKU
DA2C725BC4
Battery Healthy
100%
Regular price
$39.00
Sale price
$39.00
Regular price
$0.00
Unit price
Don't have an account with PHONEFIXKIT yet?
Create your account with no obligation. Once verified via email, you'll gain instant access to our full product catalog and exclusive pricing for repair professionals.
Verify & Access AccountSourcing higher quantities?
Looking to place a large order? Get a personalized quote tailored to your business needs and volume requirements.
Request a Custom Quote
Microsoft Xbox One X Chip Set TDP158. TDP158RSBR. TDP158RSBT (QFN-40) Black OEM
Regular price
$39.00
Sale price
$39.00
Regular price
$0.00
Unit price
Product information
The TDP158 device is an AC-Coupled HDMI signal to
transition-minimized differential signal (TMDS)
Redriver supporting digital video interface (DVI) 1.0
and high-definition multimedia interface (HDMI) 1.4b
and 2.0b output signals. The TDP158 supports four
TMDS channels and Digital Display Control (DDC)
interfaces. The TDP158 supports signaling rates up
to 6 Gbps to allow for the highest resolutions of
4k2k60p 24 bits per pixel and up to WUXGA 16-bit
color depth or 1080p with higher refresh rates. The
TDP158 can be configured to support the HDMI2.0
standard.
The TDP158 supports dual power supply rails of 1.1
V on VDD and 3.3 V on VCC for power reduction.
Several methods of power management are
implemented to reduce overall power consumption.
TDP158 supports fixed receiver EQ gain using I
2C or
pin strap to compensate for different lengths input
cable or board traces.
transition-minimized differential signal (TMDS)
Redriver supporting digital video interface (DVI) 1.0
and high-definition multimedia interface (HDMI) 1.4b
and 2.0b output signals. The TDP158 supports four
TMDS channels and Digital Display Control (DDC)
interfaces. The TDP158 supports signaling rates up
to 6 Gbps to allow for the highest resolutions of
4k2k60p 24 bits per pixel and up to WUXGA 16-bit
color depth or 1080p with higher refresh rates. The
TDP158 can be configured to support the HDMI2.0
standard.
The TDP158 supports dual power supply rails of 1.1
V on VDD and 3.3 V on VCC for power reduction.
Several methods of power management are
implemented to reduce overall power consumption.
TDP158 supports fixed receiver EQ gain using I
2C or
pin strap to compensate for different lengths input
cable or board traces.
Product type
OEM
Technical specifications
Product type
Console parts
Brand
Microsoft
Brand series
Xbox
Model
Xbox One X (2017)
Compatible with
Microsoft Xbox One X (2017)
Warranty
180 days
